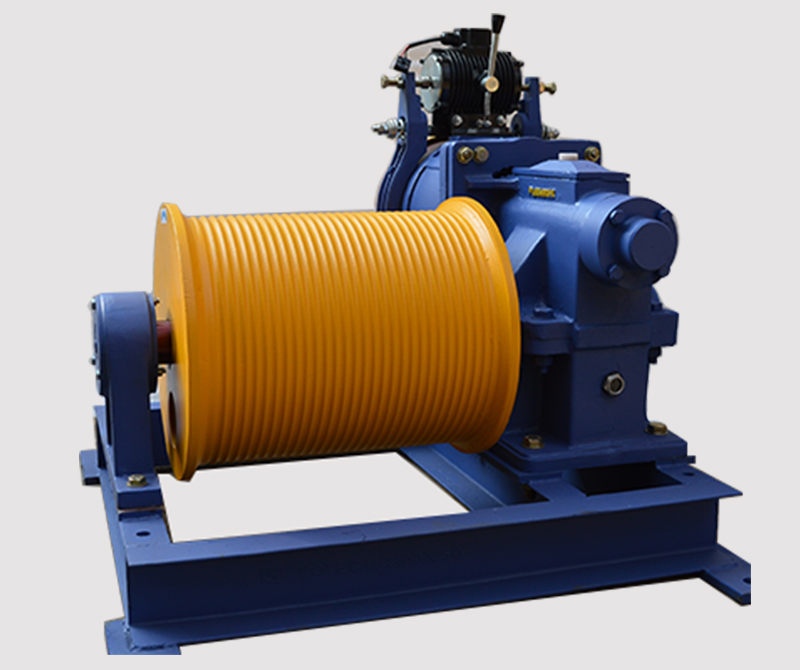

Compact Drum Waiter Series : PEC.COM 1,
PEC.COM 2, PEC COM 3, PEC COM 4

Compact Drum Waiter Series : PEC.COM 1, PEC.COM 2, PEC COM 3, PEC COM 4

Weight of machine is varying according of drum & motor.

Technical Specification

• Static Load : 2700 Kg , 3000 Kg , 4000 Kg
• Gear Ration : 1 /40 , 1/42 , 1/44 , 1/46
• Power rang (Kw) : 3.7, 4.5 , 5.5 & 7.5 [4pole & 6pole]
• Brake Voltage (D.C) : Standard 110 Volt , 220 Volt(Optional)
• Rope Size(mm) : 8mm , 10mm for up to 500 Kg & 13mm up to 1000Kg
• Travel Height : Max 70ft (Max 50ft up to 500 Kg )
• Oil Capacity(ltr) : 3.0 , 4.0
