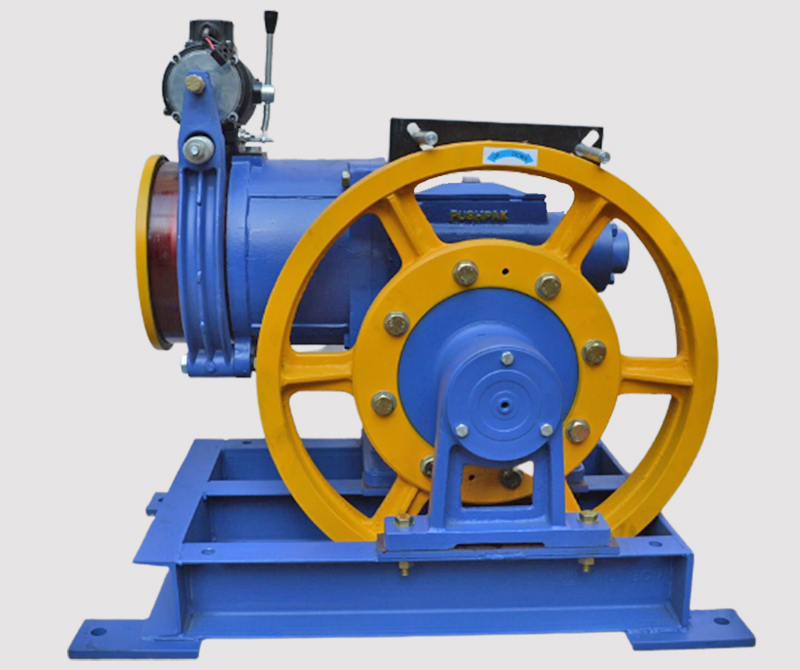

Compact Series : PEC.COM-1, COM-2
weight of machine is varying according of sheave & motor.
Technical Specification
- Static Load : 2700 Kg
- Gear Ration : 1/40, 1/46
- Power rang (Kw) : 3.7 6Pole, 4.5 & 5.5 [4pole & 6pole]
- Brake Voltage (D.C) : Standard 110 Volt, 220 Volt (Optional)
- Shave Range(mm) : 530 Standard, 560, 300 (specially for cantilever), 410, 510 & 610mm (Optional)
- Ctc Base with Drivator : Min. 650mm to Max. 1000mm (As per your required)
- Oil Capacity(liter) : 3.0
- Machine weight (Kg) : 270
- Compact Series : PEC.COM-1
- Compact Series : PEC.COM-2
- Compact Series : PEC.COM-3
- Compact Series : PEC.COM-4
- Compact Drum Waiter Series : PEC.COM 1, PEC.COM 2, PEC COM 3, PEC COM 4
- Regular 3Pes Machine Series : PEC.5, PEC.6
- Regular 3Pes Machine Series : PEC.5, PEC.6 (Specially Design For Non V3F)
- Regular 3pes Machine with ctc Base Series per, 5 PEC, PEC-6 PEC7
- Regular 3Pes Drum Waiter Series : PEC 5, PEC 6, PEC 7, PEC 8, PEC 9
- Regular 3Pes Goods Machine Series : PEC 7, PEC 8, PEC 9
- Regular 3Pes FLP Machine Series : PEC 5, PEC 6, PEC 7, PEC 8, PEC 9
