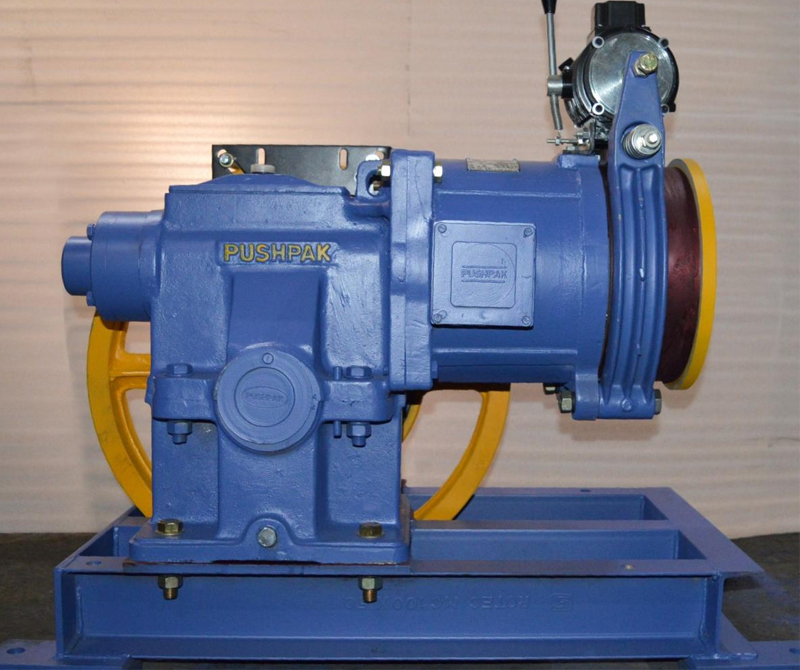

Compact Series : PEC.COM-3
Weight of machine is varying according of sheave & motor.
Technical Specification
- Static Load : 3000 Kg
- Gear Ration : 1/44
- Power rang (Kw) : 4.5 & 5.5 [4pole & 6pole]
- Brake Voltage (D.C) : Standard 110 Volt , 220 Volt(Optional)
- Shave Range(mm) : 530 Standard , 560, 300 (specially for cantilever) ,410 , 510 & 610mm (Optional)
- Ctc Base with Drivator : Min. 650mm to Max. 1000mm (As per your required)
- Oil Capacity(ltr) : 3.0
- Machine weight(Kg) : 350
