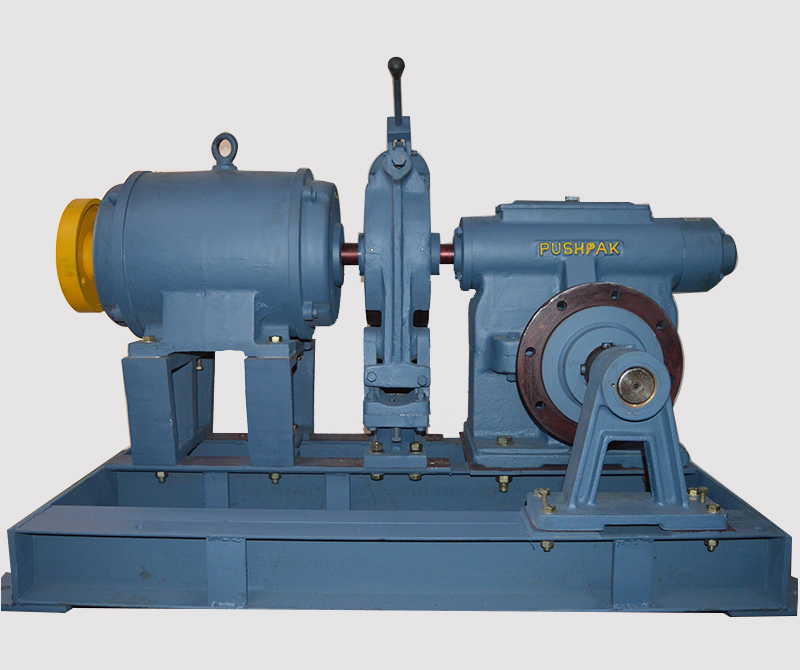

Regular 3Pes Goods Machine Series : PEC 7, PEC 8, PEC 9
Weight of machine is varies according of drum & motor.
Technical Specification
- Static Load : 5000 Kg, 7500 Kg, 9000 Kg
- Gear Ration : 1 /42 & 1/50 FOR PEC 7 , 1/49 FOR PEC 8 , 1/46 FOR PEC9
- Power rang (Kw) : 5.5 , 7.5 , 9.3 , 11 , 15 & 19 [4pole & 6pole]
- Brake Voltage (D.C) : Standard 110 Volt , 220 Volt(Optional)
- Sheave Range(mm) : 610mm, 510 & 560 OR 680 , 710mm(Optional)
- Oil Capacity (ltr) : 5.0 , 7.0 , 9.0
- Machine weight (Kg) : 700Kg, 800Kg & 1000 Kg
- Compact Series : PEC.COM-1
- Compact Series : PEC.COM-2
- Compact Series : PEC.COM-4
- Compact Drum Waiter Series : PEC.COM 1, PEC.COM 2, PEC COM 3, PEC COM 4
- Regular 3Pes Machine Series : PEC.5, PEC.6
- Regular 3Pes Machine Series : PEC.5, PEC.6 (Specially Design For Non V3F)
- Regular 3pes Machine with ctc Base Series per, 5 PEC, PEC-6 PEC7
- Regular 3Pes Drum Waiter Series : PEC 5, PEC 6, PEC 7, PEC 8, PEC 9
- Regular 3Pes Goods Machine Series : PEC 7, PEC 8, PEC 9
- Regular 3Pes FLP Machine Series : PEC 5, PEC 6, PEC 7, PEC 8, PEC 9
