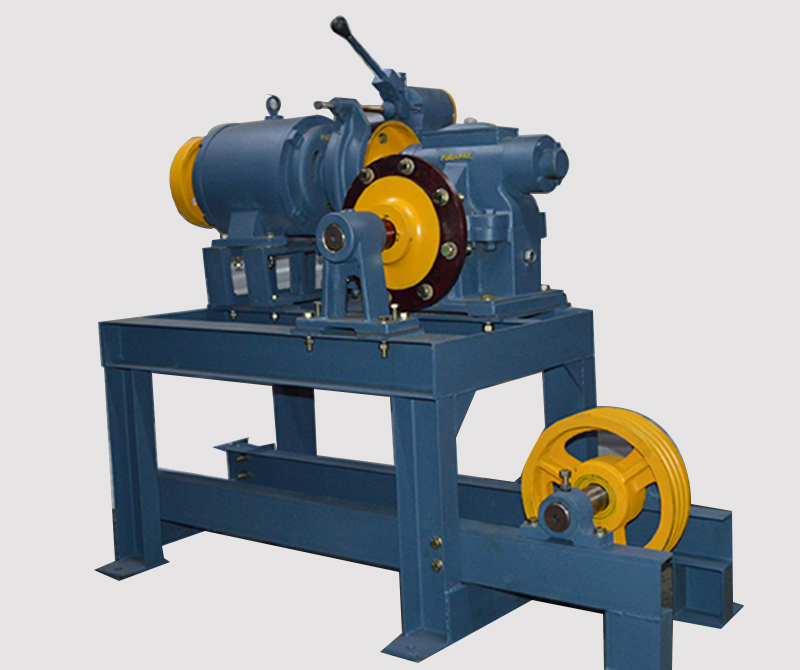

Regular 3pes Machine with ctc Base Series per, 5 PEC, PEC-6 PEC7

Regular 3pes Machine with ctc Base Series per, 5 PEC, PEC-6 PEC7

Weight of machine is varying according of sheave & motor.

Technical Specification

• Static Load : 2500 Kg, 4000 Kg, 5000Kg
• Gear Ration : 1/40, 1/42, 1/46, 1/50
• Power rang (Kw) : 3.7 & 5.5 & 7.5 [4pole & 6pole]
• Brake Voltage (D.C) : Standard 110 Volt , 220 Volt(Optional)
• Sheave Range(mm) : 530mm Standard, 410, 510, 560 mm(Optional)
• Ctc Base with Drivator : Min. 650mm to Max. 1200mm (As per your required)
• Oil Capacity (ltr) : 3.0 , 4.0 , 5.0
