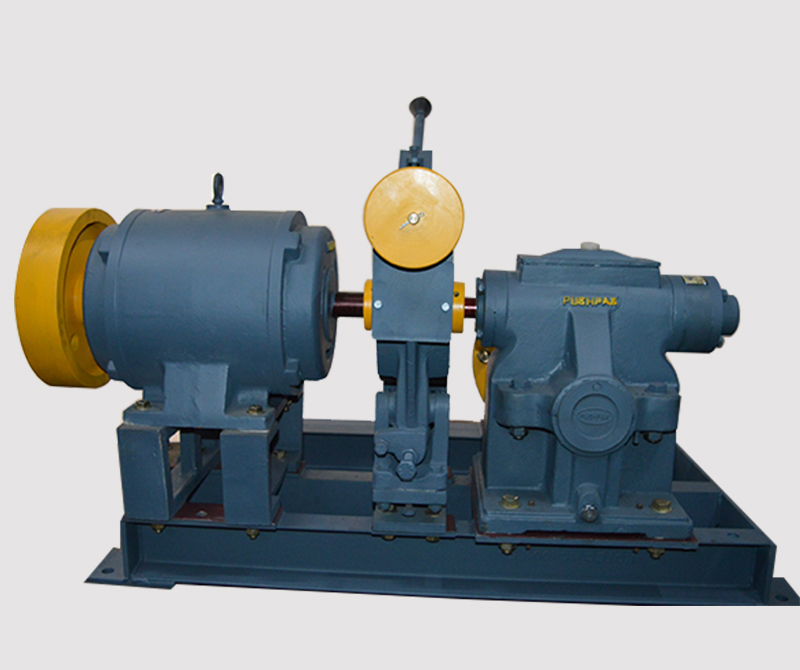

Regular 3Pes Machine Series : PEC.5, PEC.6
(Specially Design For Non V3F)

Regular 3Pes Machine Series : PEC.5, PEC.6 (Specially Design For Non V3F)

Weight of machine is varying according of sheave & motor.

Technical Specification

• Static Load : 2500 Kg, 4000 Kg
• Gear Ration : 1/40 , 1/46
• Power rang (Kw) : 3.7 & 5.5 [4pole & 6pole]
• Brake Voltage (D.C) : Standard 110 Volt, 220 Volt(Optional)
• Sheave Range(mm) : 530mm Standard, 410, 510, 560mm (Optional)
• Oil Capacity (ltr) : 3.0, 4.0
• Machine weight (Kg) : 400Kg, 500Kg
• SPECIAL SUITABLE MODEL FOR WITHOUT V3F DRIVE WORK : Max sheave 560mm
